Products
MPM Gen IV ICCP Systems

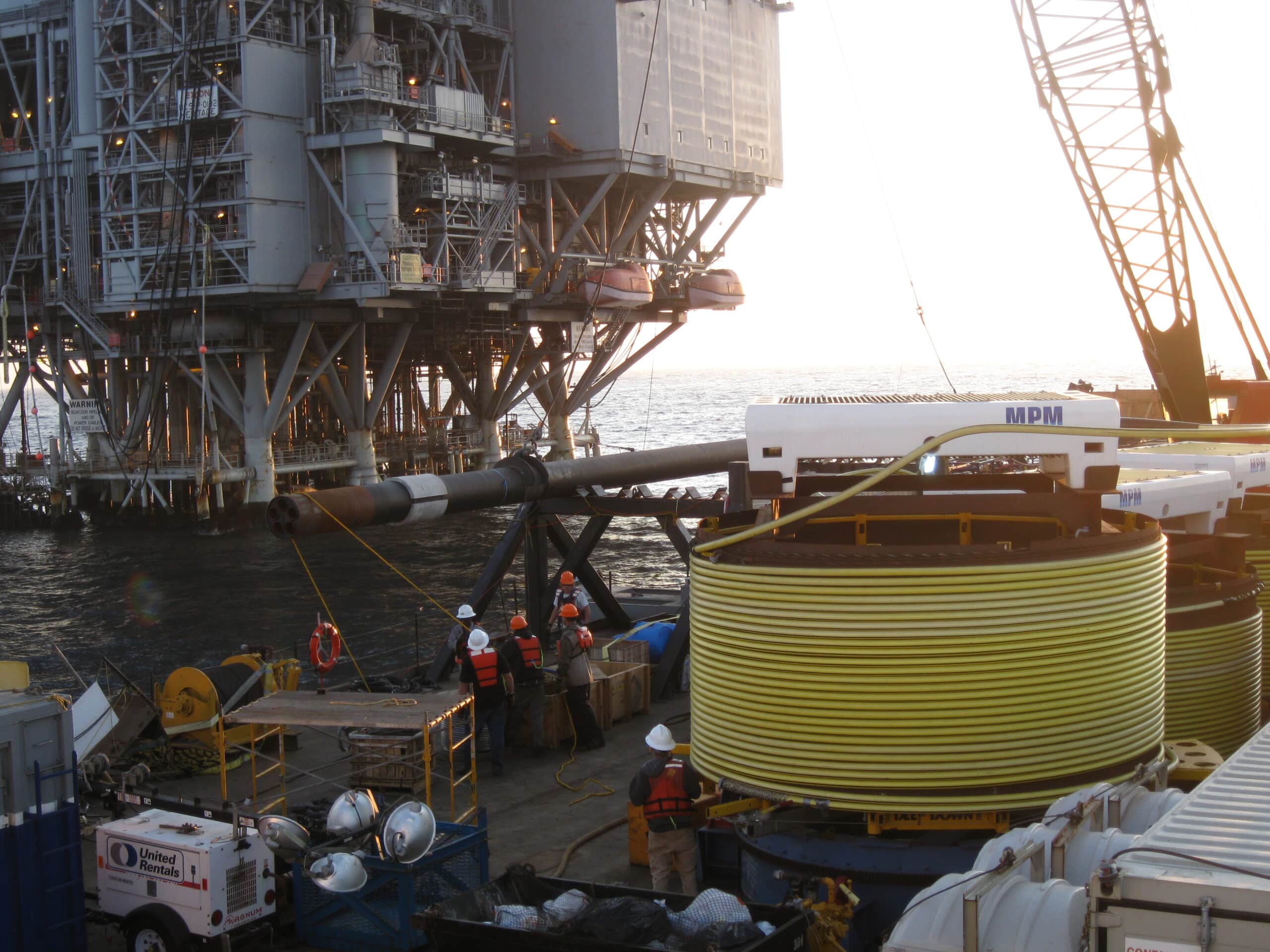

MPM’s Generation IV Impressed Current Cathodic Protection (ICCP) Systems provide subsea corrosion protection that is proven to be reliable, durable, and cost effective and are designed for long term operation. The MPM sleds, which house mixed metal oxide (MMO) anodes, have been utilized for corrosion protection of platform jackets and subsea pipelines in water depths up to 1,280 feet (390 meters). Design enhancements incorporated in the Generation IV system now provide an output of up to 1,000 amps. The Gen IV ICCP anode sleds have been installed utilizing remotely operated vehicles (ROVs) and/or divers, and each MPM ICCP system is tailored to the facility requirements and design life. Press the button below for more information.
MPM Anode Sled Kit ICCP System

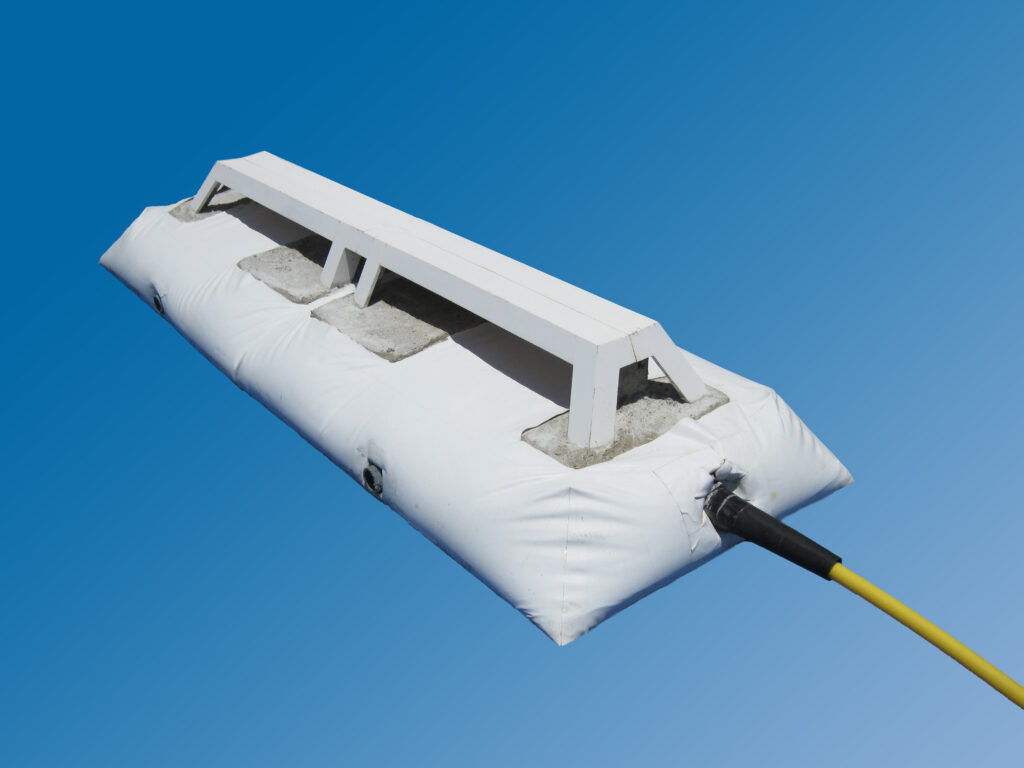

MPM’s patented anode sled kit ICCP system is designed specifically for shallower depths and/or smaller marine structures, providing an output up to 220 amps per sled. This system is ideally suited for shallow platforms, ports, harbors, or marine terminals, with a service life of up to 30 years. The “kit” was developed to provide a low cost, lower output system than would be applicable for large marine structures serviced by our Gen IV systems. Press the button below for more information.
MPM Deep Anode String™ Cathodic Protection System
MPM Deep Anode String™ (MPM DAS) is the cost effective long term solution for retrofitting cathodic protection systems where the system must be installed inside the structure’s perimeter. The DAS can be spooled on standard cable reels, which greatly reduces shipping, handling, and installation costs over conventional string anode systems. Press the button below for more information.
Cathodic Protection Armored Power Cable
MPM offers 2/0 AWG and 350-kcmil armored power cable, manufactured and tested to our strict requirements. Press the button below for more information.

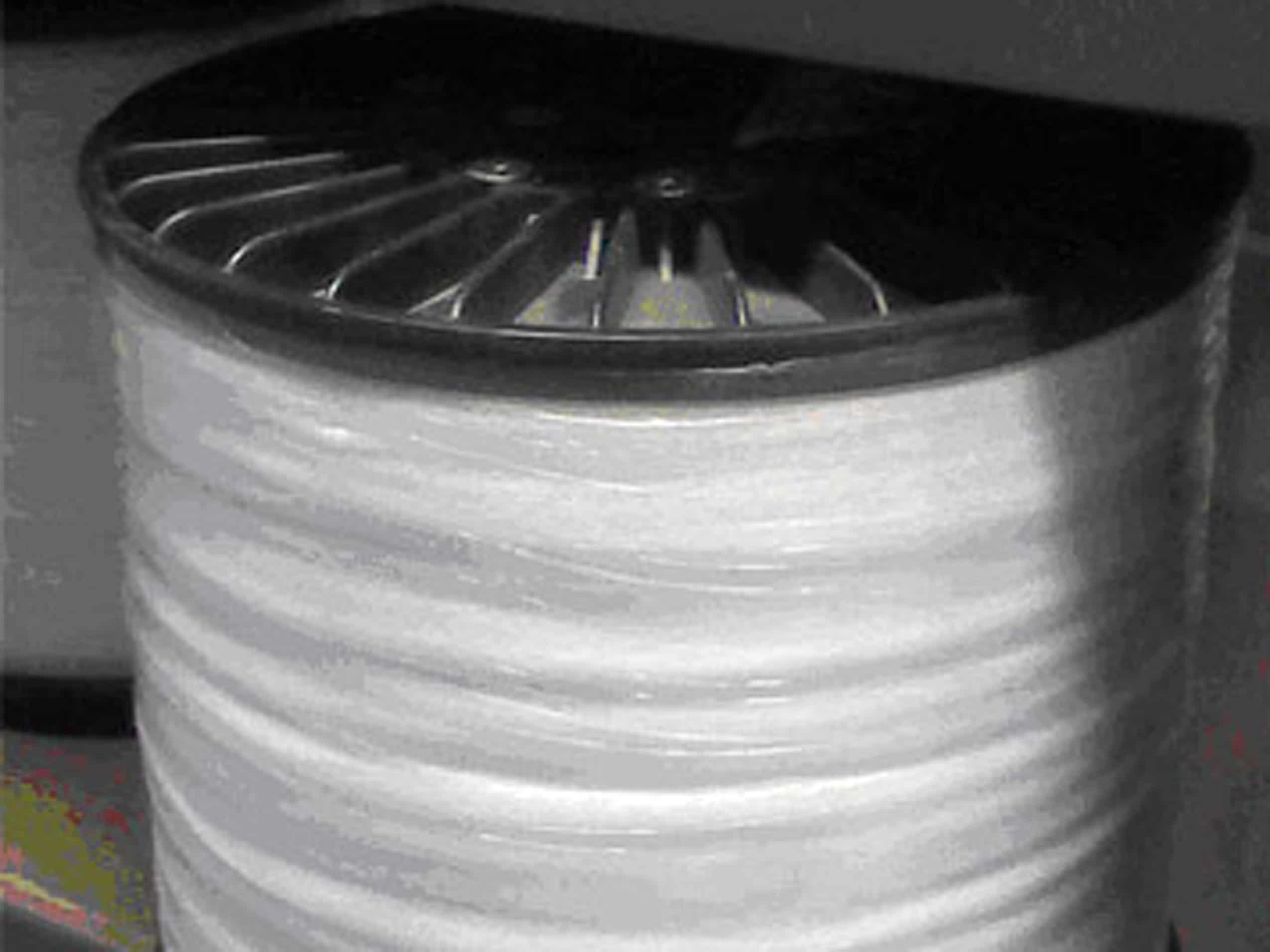

CP Survey Trailing Wire
MPM offers dual insulated trailing wire for your towfish or ROV CP Surveys. Available in 24ga stranded and 26ga solid core. Press the button below for more information
